Recessed Single Fixture

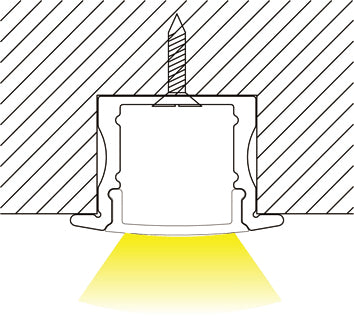

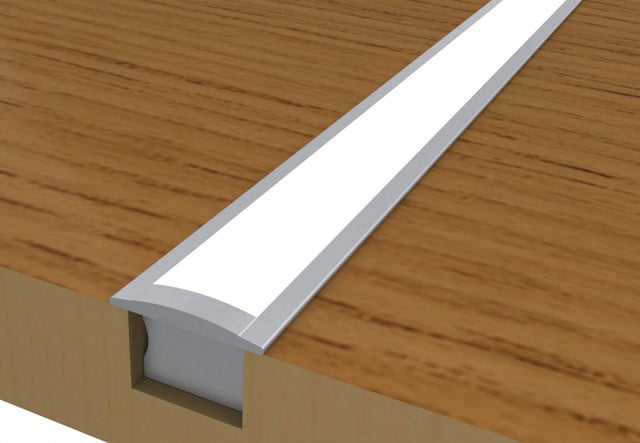

Perfect Fit Recessed Single Fixtures are made in the USA by Northwest LED Lighting. Just 5/8″ tall X 11/16″ wide, these fixtures are ideal for recessed under-cabinet, in-cabinet, shelf and cove lighting. These deeper housings compared to Micro increase the diffusion of the lens and reduce LED imaging on the lens, making them ideal for exposed mounting locations. Available with Frosted, Prismatic, and focus diffuser lens options in lengths from 4″ to 16 feet in many brightness and color temperature options. 3M mounting tape standard. 3/4″ Wide, 1/2″ deep channel recommended for mounting.
Downloads
Product Options
Brightness Specifications
| Brightness | Watts/ft. | Lumens | LEDs/ft. | Best Uses |
| Soft | 1.5 | 130 Lumens/Ft. | 18 | Toe kick, small cabinet interior lighting |
| Medium Bright | 2.9 | 260 Lumens/Ft. | 36 | In cabinet & display lighting where fixtures are visible |
| Bright | 4 | 350 Lumens/Ft. | 18 | Under cabinet, task, pantry |
| Extra Bright | 4.4 | 400 Lumens/Ft. | 36 | Under cabinet, task, pantry |
| Ultra Bright | 5.5 | 763 Lumens/Ft. | 39 | Task, Wall Wash, Very Bright Under Cabinet |
| RGB | 4.4 | Color adjustable | 18 | Color Adjustable |
| RGBW | 5.1 | 180 | 18 | Color adjustable plus White Light |
| Warm Dim | 2.9 | 275 Lumens/Ft. | Decorative, Pendant, Vanities |
Color Temperature Options
| Temperature | Traditional Equivalent | Description | |
| 2700-1800 "Warm Dim" | Dimmed Incandescent | Warm Dim - 2700k dims to 1800k | |
| 2400 k | Dimmed Incandescent | Very Warm White | |
| 2700 k | Incandescent White | Warm White | |
| 3000 k | Halogen White | White | |
| 3500 K | White | White | |
| 4000 k | Natural White | Cool White |
Lens Options
| Lens | Description |
| Black | Appears black when not lit, best for areas where de-emphasizing the lens is desired (reduces light output). |
| Focus | Narrow focus lens for wall wash / grazing and sign lighting. |
| Prismatic | Produces a brighter, slightly whiter light and are preferred where maximum light output is desired and the fixture is hidden from normal view. |
| Frosted | Produces a softer, slightly warmer diffused light and are preferred with reflective surfaces to minimize glare and reflection. |
Finish Options
| Finish | |
| Custom colors available | |
| Bronze | |
| Black | |
| White | |
| Silver (Standard) |
