Electronic Dimmable Drivers

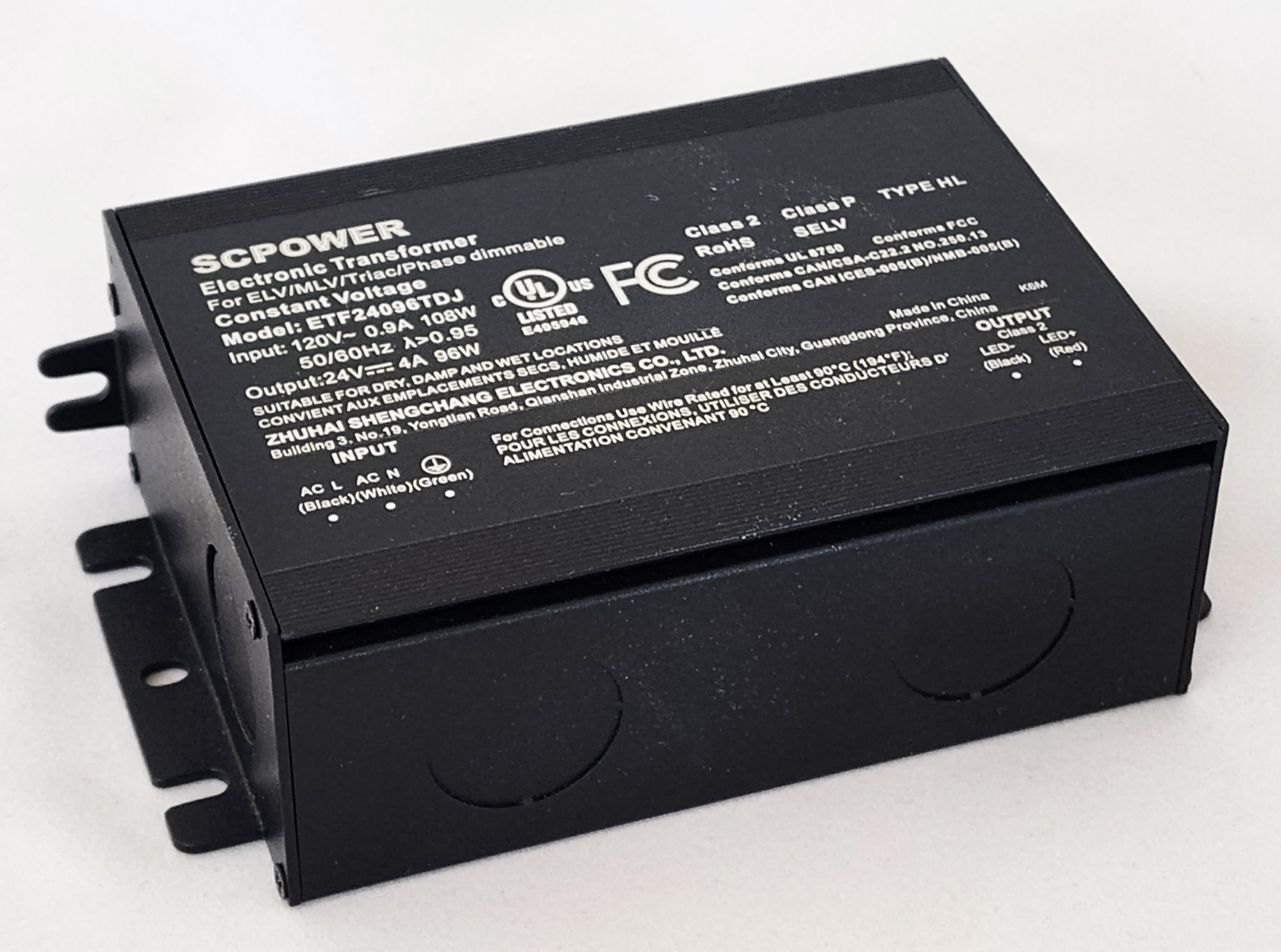

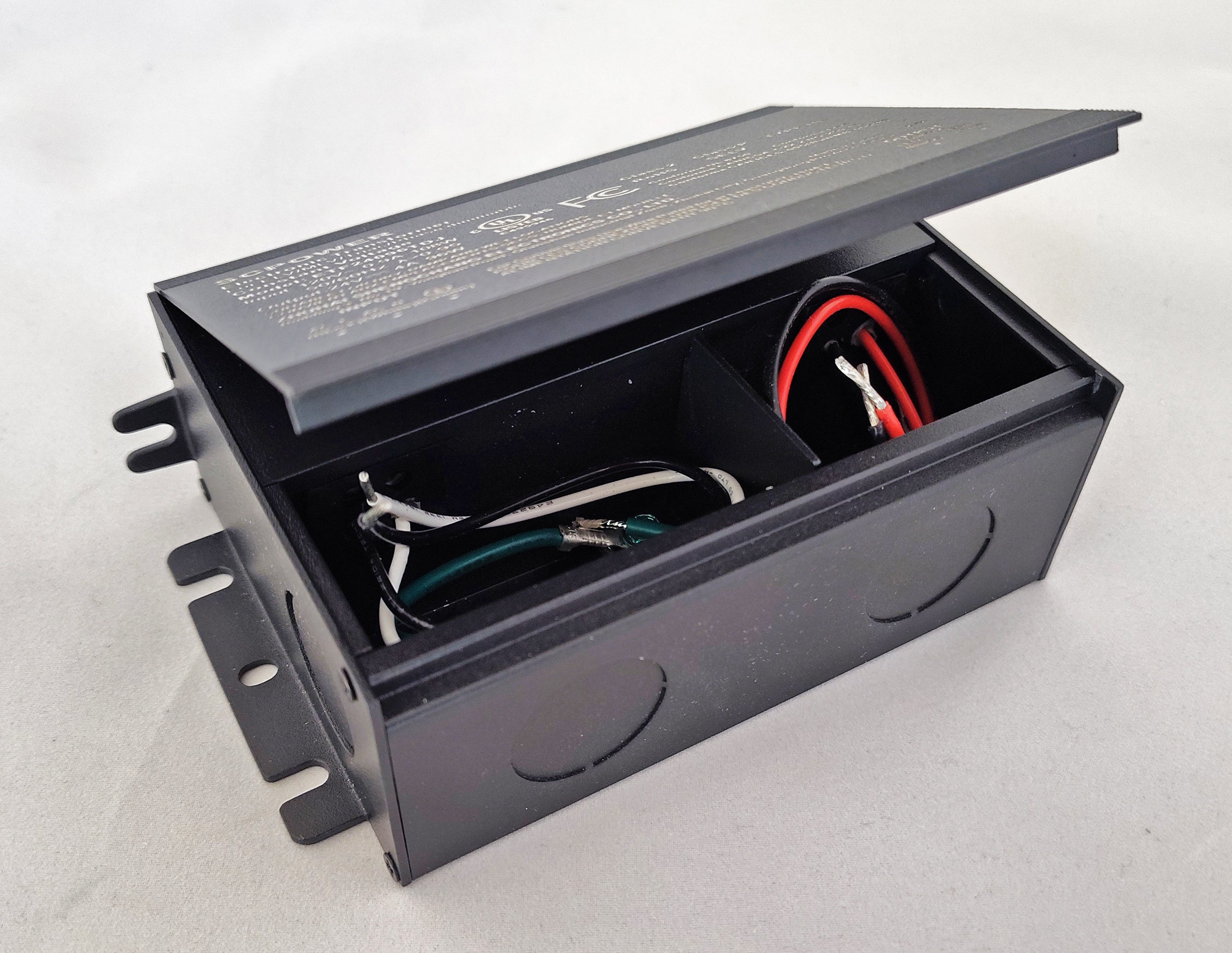

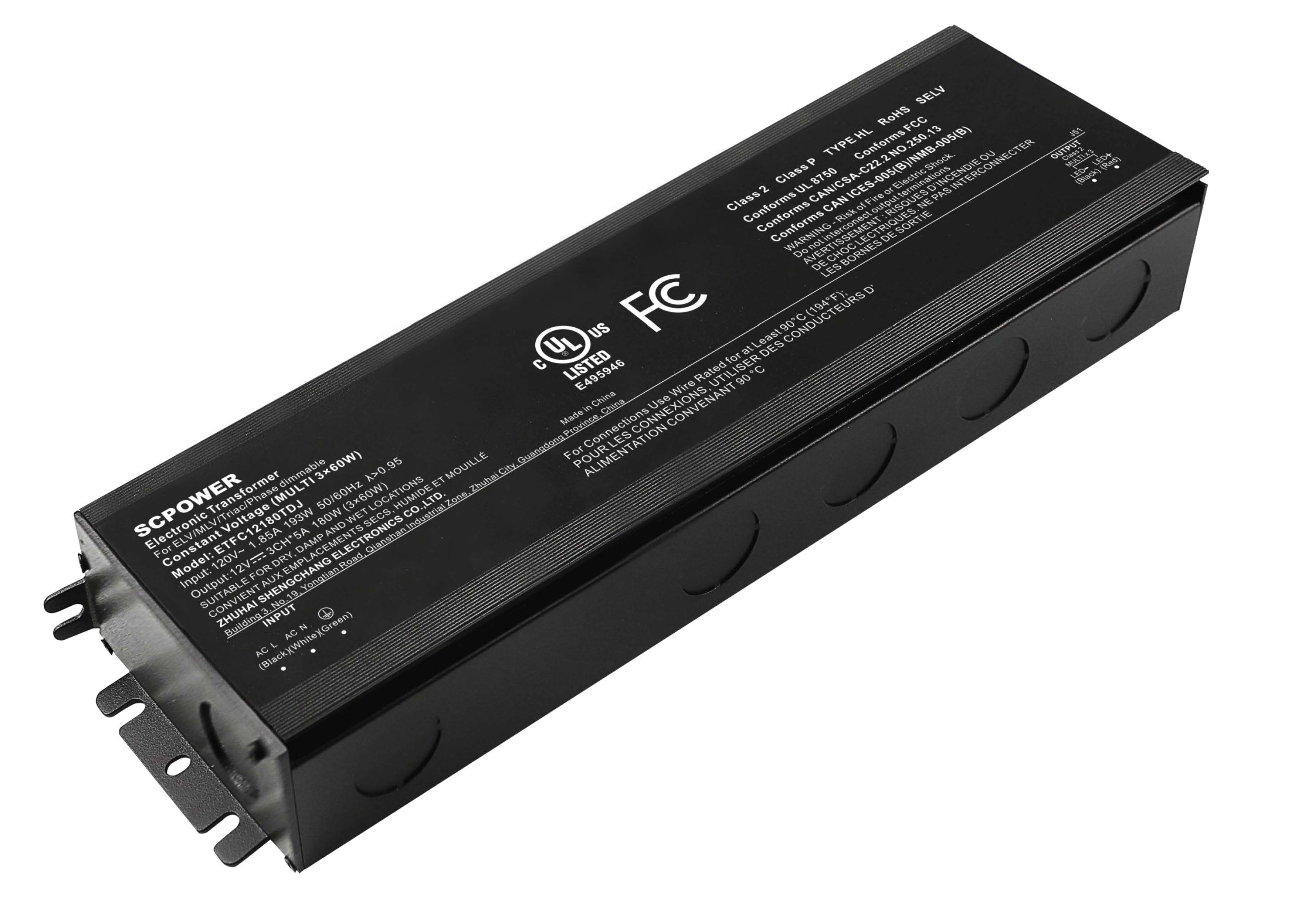

SC-ETF Series - Compact, hardwired economical dimmable transformers. Quick install, snap close NEMA J-box metal case with 6 wiring knock-outs.    UL Listed, wet location rated &120 VAC input.  Overload, overcurrent, and temperature protected. 20% minimum load required for best dimming performance. Flicker free, 0-100% dimming range & compatible with most Triac / MLV / ELV & incandescent dimmers.   Multi-output class 2 models available.

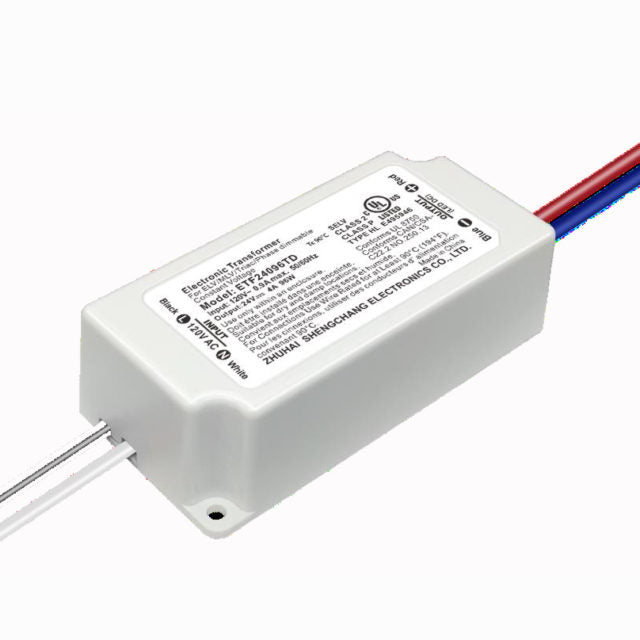

SCJ Series - Versatile, dimmable mini drivers designed to mount inside a Junction box.  Dimmable with incandescent / Triac / MLV /ELV dimmer switches. 10% minimum load recommended for best dimming.

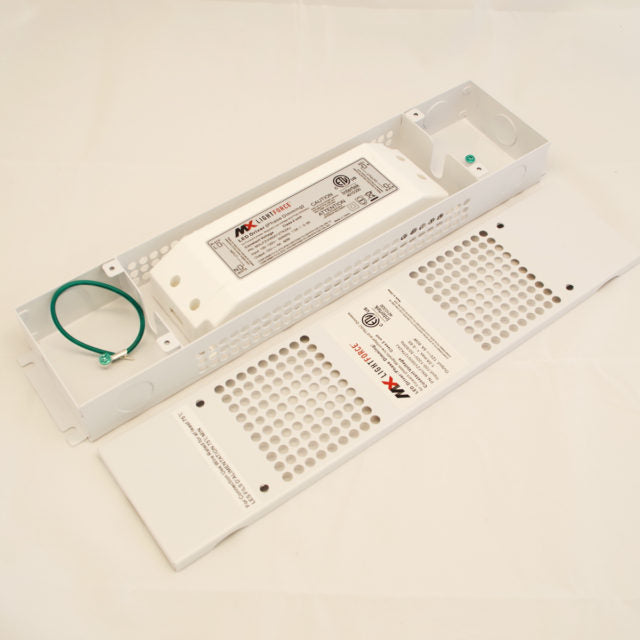

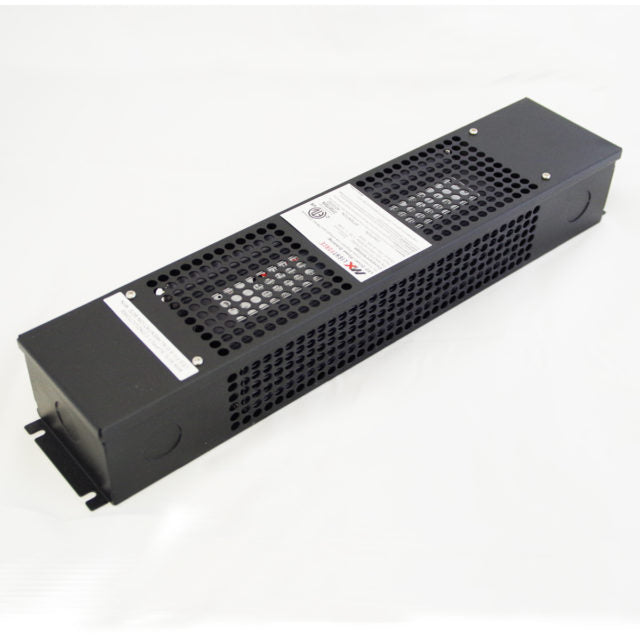

MX Series – Economical dimmable drivers.  Hardwired and compatible with any Triac / MLV / incandescent dimmer switch.  ETL Listed, IP20 dry location rated.  Integrated coated metal junction box case with 6 wiring knock-outs.  Overload, overcurrent, and temperature protected. 5% minimum load required.
$68.60
View details

Downloads

Dimmable Electronic Drivers Perfect Fit Dimmable Electronic Driver Specifications

Product Options

MX Models and Specifications:

Model # Voltage Wattage Dimensions (L x W x H) Class 2 Case Color
SC-ETF-12060-TDJ 12 v DC 60 5” X 3 1/8” X 1 5/8” Y Black
SC-ETF-24060-TDJ 24 v DC 60 5” X 3 1/8” X 1 5/8” Y Black
SC-ETF-24096-TDJ 24 v DC 96 5” X 3 1/8” X 1 5/8” Y Black
SC-ETF-24200-TDJ 24 v DC 200 6 ½” X 4” X 1 5/8” N Black
SC-ETF-24300-TDJ 24 v DC 300 6 ½” X 4” X 1 5/8” N Black
SC-ETF-C12120-TDJ 12 v DC 2 X 60 7 ¾” X 3 1/8” x 1 5/8” Y Black
MX-ZV025012TK2AJ 12 v DC 25 13.75″ x 3″ x 1″ Y White
MX-ZV025024TK2AJ 24 v DC 25 13.75″ x 3″ x 1″ Y White
MX-ZV050012TK2AJ 12 v DC 50 13.75″ x 3″ x 1″ Y White
MX-ZV050024TK2AJ 24 v DC 50 13.75″ x 3″ x 1″ Y White
MX-ZV060012TK2AJ 12 v DC 60 13.75″ x 3″ x 1.5″ Y White
MX-ZV060024TK2AJ 24 v DC 60 13.75″ x 3″ x 1.5″ Y White
MX-ZV096024TK2AJ 24 v DC 96 15″ x 3″ x 2.25″ Y Black
MX-ZV100012TK2AJ 12 v DC 100 15″ x 3″ x 2.25″ N Black
MX-ZV150012TK2AJ 12 v DC 150 16″ x 3.375″ x 2.3″ N Black
MX-ZV150024TK2AJ 24 v DC 150 16″ x 3.375″ x 2.3″ N Black
MX-ZV200012TK2AJ 12 v DC 200 16″ x 3.375″ x 2.3″ N Black
MX-ZV200024TK2AJ 24 v DC 200 16″ x 3.375″ x 2.3″ N Black

SCJ Models and Specifications:

Model # Voltage Wattage Dimensions (L x W x H) Class 2 Case Color
SCJ-ETF12060TD 12 v DC 60 3.25″ x 1.6″ x 1″ Y No Case
SCJ-ETF24060TD 24 v DC 60 3.25″ x 1.6″ x 1″ Y No Case
SCJ-ETF24096TD 24 v DC 96 3.25″ x 1.6″ x 1″ Y No Case

SC-ETF Models and Specifications:

Model # Voltage Wattage Dimensions (L x W x H) Class 2 Case Color
SC-ETF-12060-TDJ 12 60 5” X 3 1/8” X 1 5/8” Y Black
SC-ETF-24060-TDJ 24 60 5” X 3 1/8” X 1 5/8” Y Black
SC-ETF-24096-TDJ 24 96 5” X 3 1/8” X 1 5/8” Y Black
SC-ETF-24200-TDJ 24 200 6 ½” X 4” X 1 5/8” N Black
SC-ETF-24300-TDJ 24 300 6 ½” X 4” X 1 5/8” N Black
SC-ETF-C12120-TDJ 12 2 X 60 7 ¾” X 3 1/8” x 1 5/8” y Black
