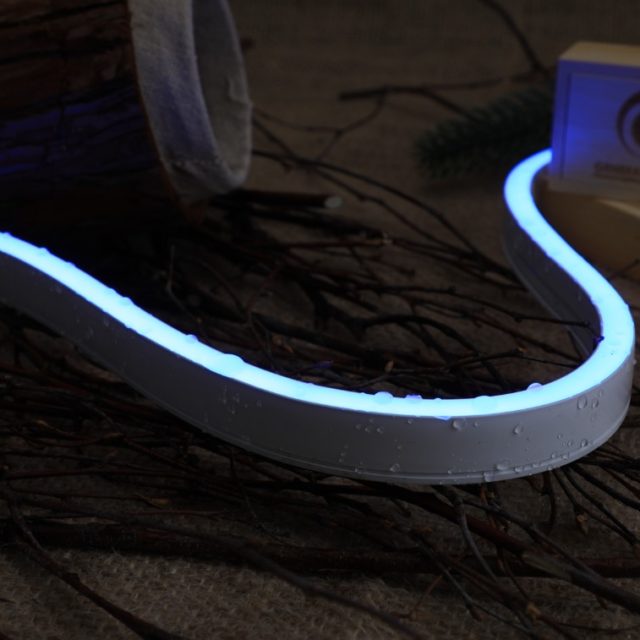

Neon Flex Side Emitting Flexible Fixture

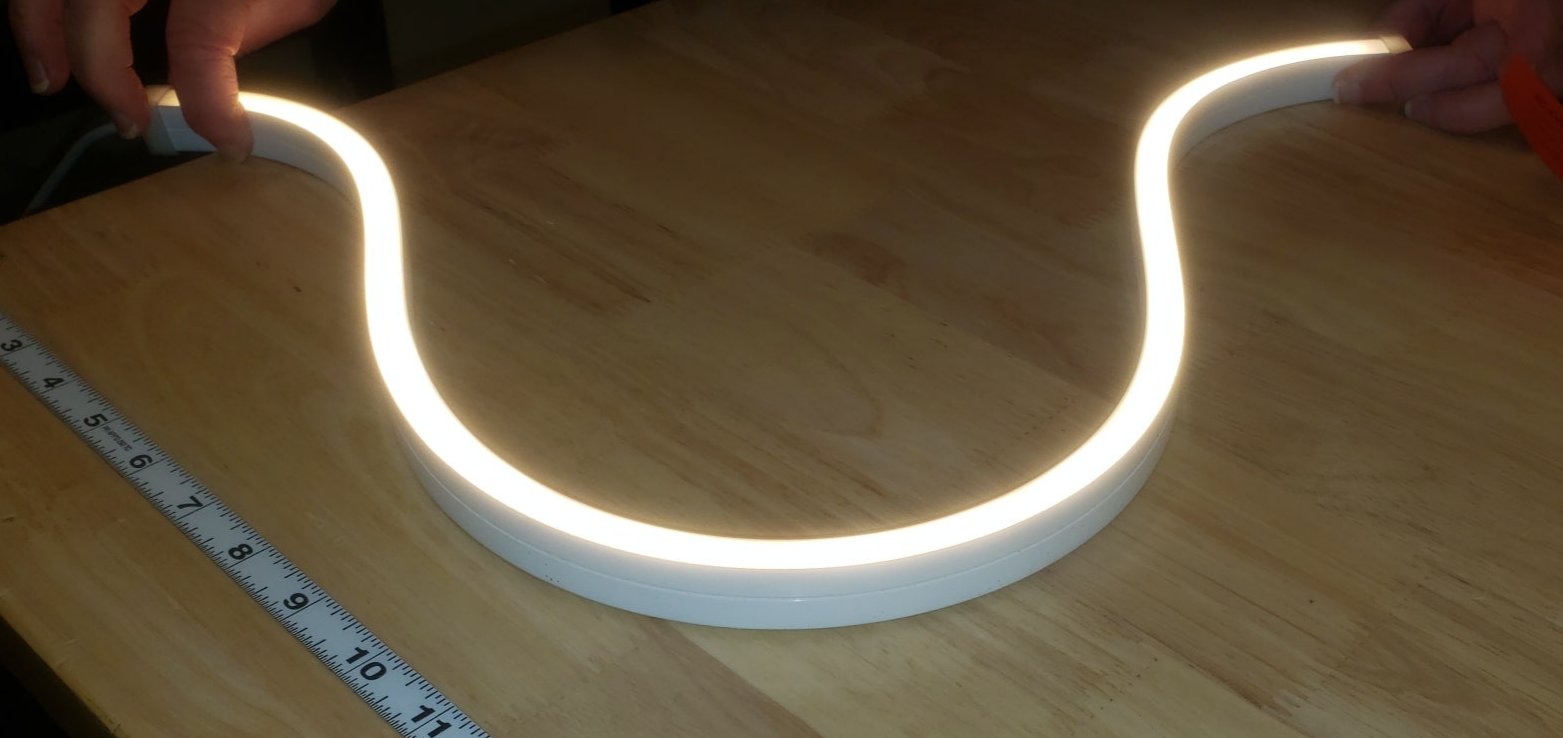

Professional quality, Side Emitting Neon Flex flexible fixtures create beautiful even lighting around curves and shapes. Uniform, “dot free” output. Waterproof and available in multiple color and brightness options to meet your lighting needs. High Color Rendering Index (CRI) of 93 or better illuminates in true colors.

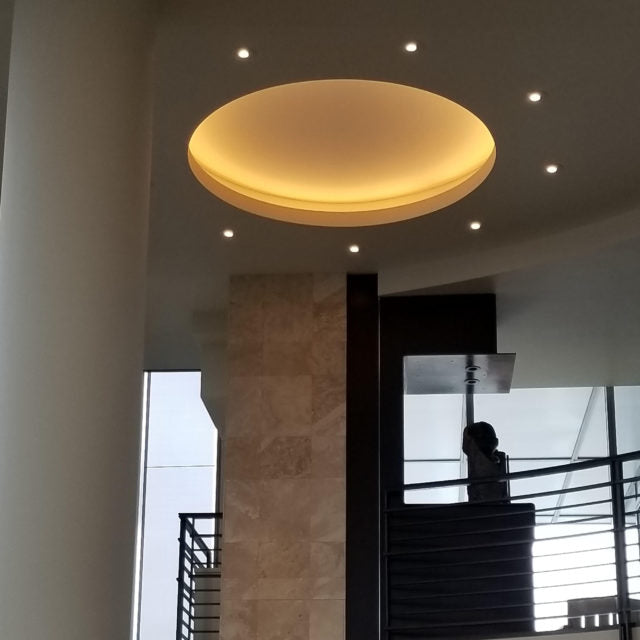

Side Emitting Neon Flex flexible fixtures are dimmable, low voltage lighting that emits light from the edge of the strip, making it suitable for use in areas where a “wall wash” effect is desired, especially along curved surfaces where typical top mounted LED ribbon won’t do.
Custom Fabricated in any length up to 16.4 feet per section. Longer runs can be created with intermediate feed points. Can be ordered in custom lengths, with custom lead wires and even interconnected to another piece.

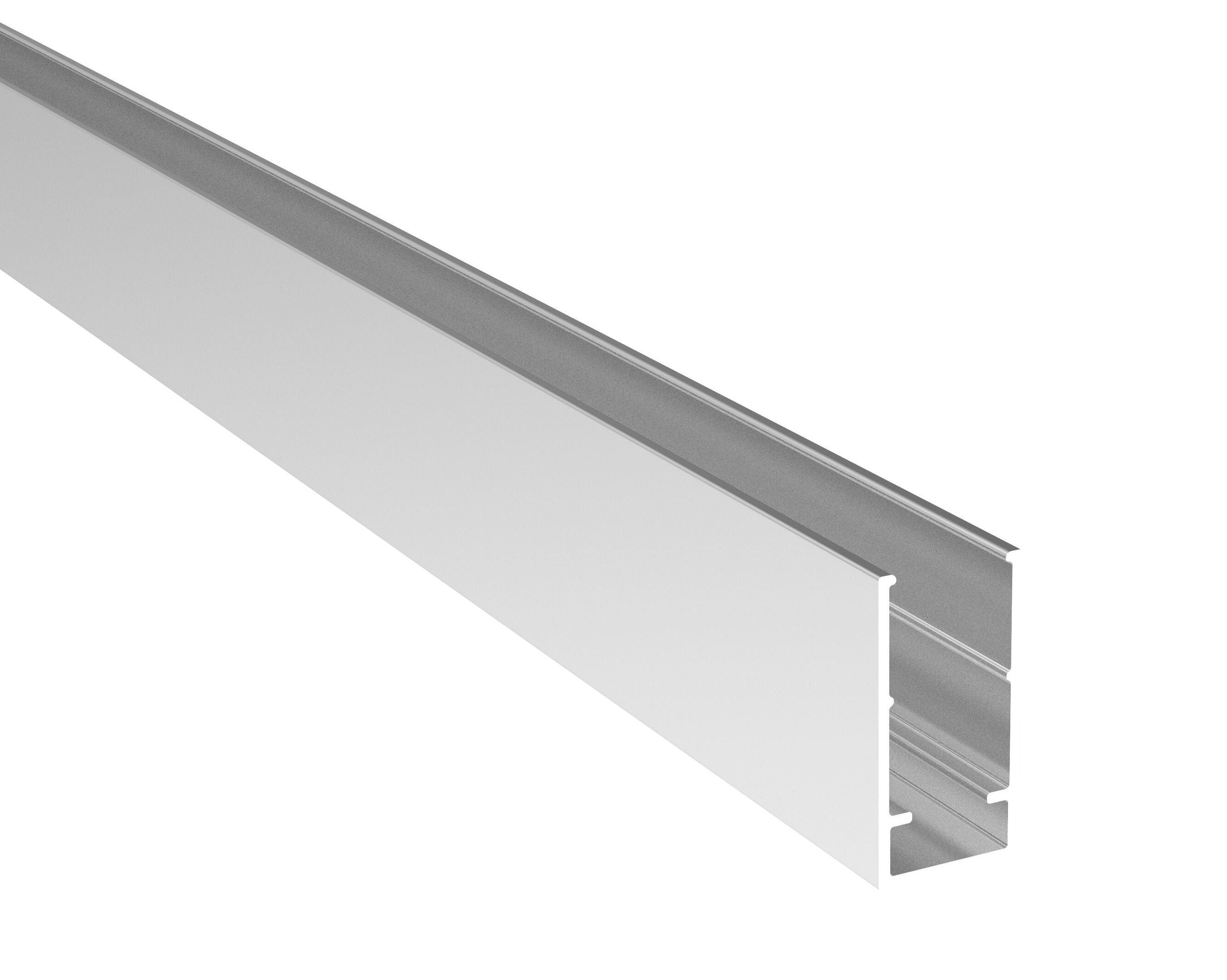

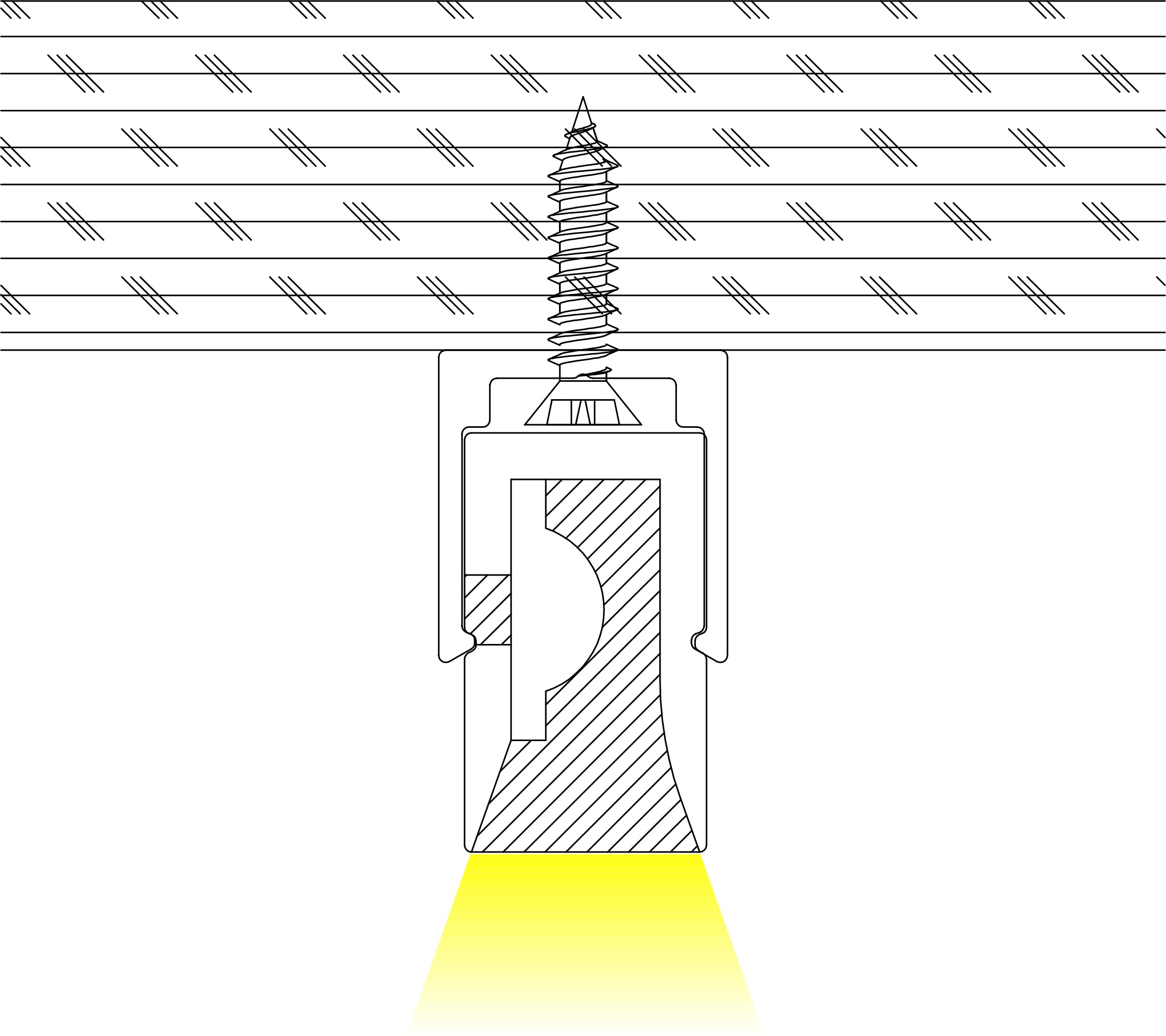

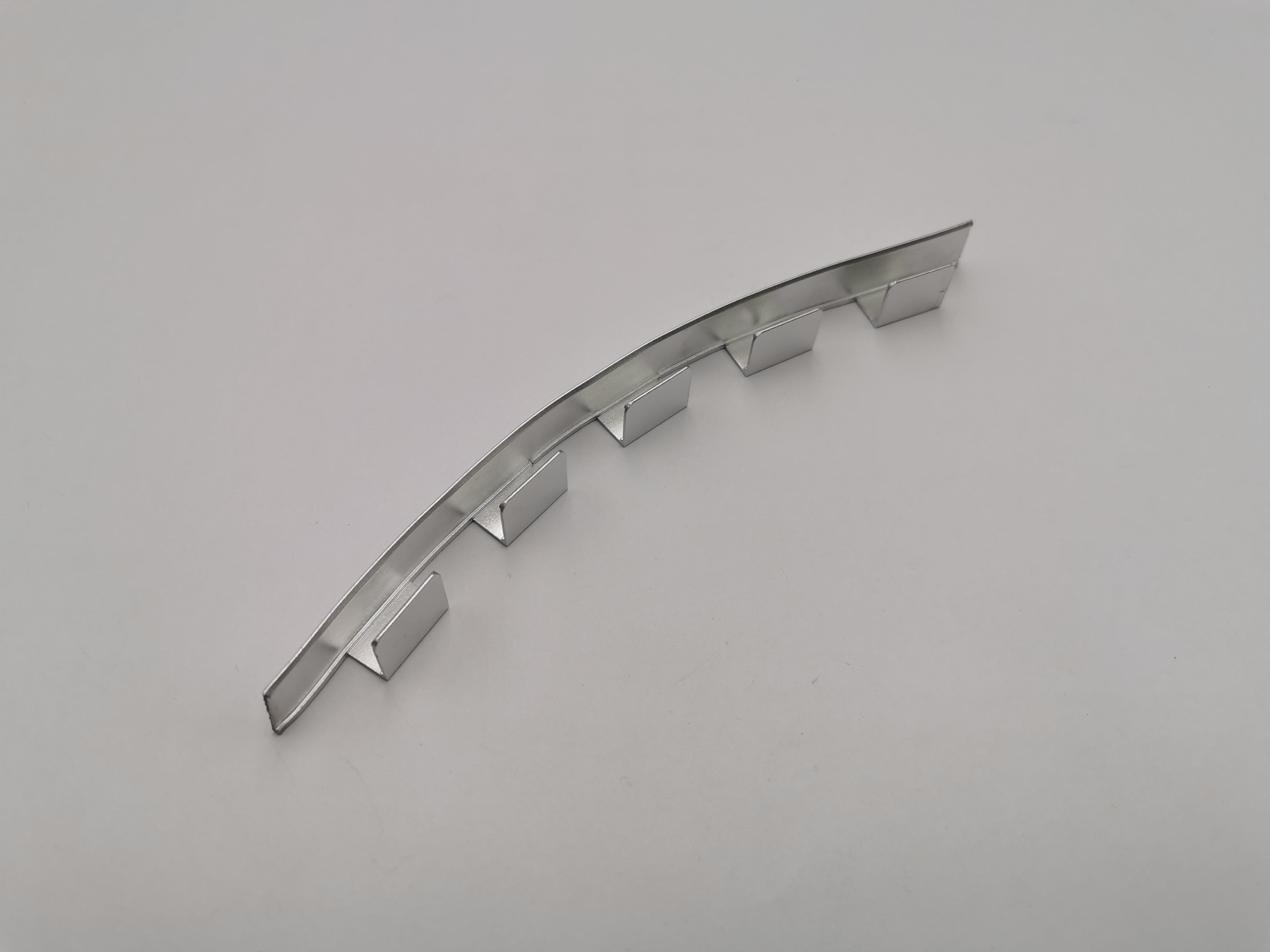

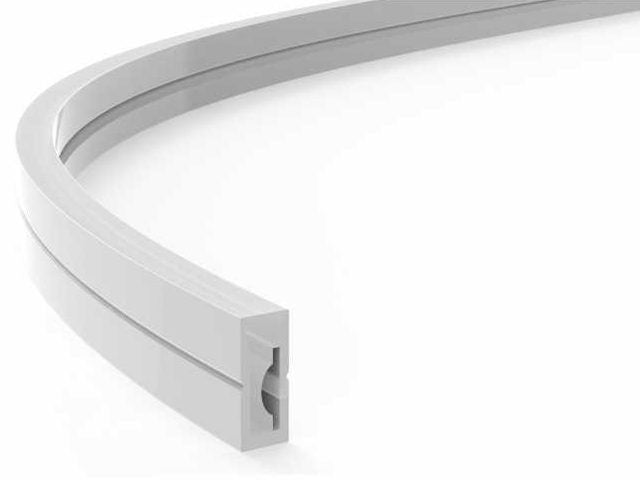

NEON FLEX series fixtures are made of flexible & waterproof dual silicone extrusion and come standard with mounting clips.
Downloads
Product Options
Brightness Specifications
| Brightness | Watts/ft. | Lumens | LEDs/ft. | Best Uses |
| Soft | 1.5 | 130 Lumens/Ft. | 18 | Toe kick, small cabinet interior lighting |
| Medium Bright | 2.9 | 260 Lumens/Ft. | 36 | In cabinet & display lighting where fixtures are visible |
| Bright | 4 | 350 Lumens/Ft. | 18 | Under cabinet, task, pantry |
| Extra Bright | 4.4 | 400 Lumens/Ft. | 36 | Under cabinet, task, pantry |
| RGB | 4.4 | Color adjustable | 18 | Color Adjustable |
Color Temperature Options
| Temperature | Traditional Equivalent | Description | |
| 2400 k | Dimmed Incandescent | Very Warm White | |
| 2700 k | Incandescent White | Warm White | |
| 3000 k | Halogen White | White | |
| 4000 k | Natural White | Cool White |
